Traction Lab

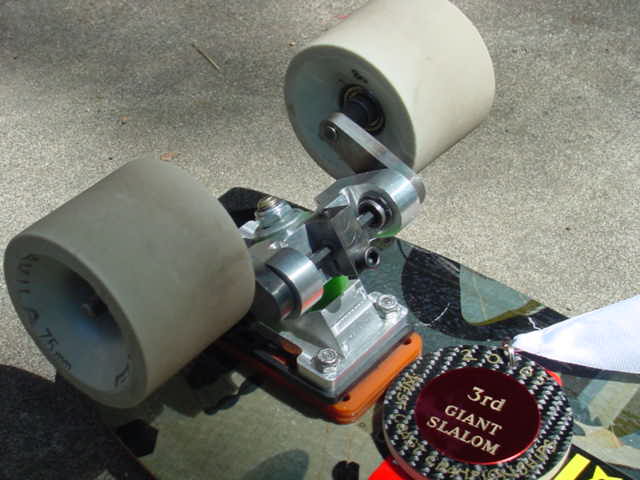

For your viewing/racing pleasure. The folks at Hood River got a peek at this experimental independent rear suspension racing truck, so now it's your turn.
Inspired by the proven Independent Suspension and Radikal truck designs
Inspired by the proven Independent Suspension and Radikal truck designs
-
- Texas Outlaw
- Posts: 714
- Joined: Thu Oct 24, 2002 2:00 am
- Location: Harlingen, Texas
-
- Carsten Pingel
- Posts: 489
- Joined: Wed Apr 28, 2004 12:54 pm
I find it amazing to see what has come out of slalom skateboarding in the last few years. I would think it benefits skateboarding as a whole. Killer trucks like the TTC, PVD, Radikal (above), Airflow, Splitfire, composite decks, wheels, etc. What other skateboarding discipline has generated so much skateboarding innovation in just the last few years?
-
- Posts: 324
- Joined: Sat Sep 25, 2004 4:48 am
Innovations
Both Downhill (Standup) and Streetluge have gone through similar changes, although at a slightly more sedate pace. The reasons for the lesser degree of innovation are many, but basically it's material cost, and Risk to the Racers. We in Slalom can 'tweak' a setup and get it kinda figured out in a few runs, at speeds that usually won't break vital body parts.
Put together a 'new' ride in Downhill, and it'll take a few runs before you should trust it enough to start going Fast. Add an Innovative idea in there, and you'll probably want a few Days on it to sort out how predictable it's going be at speed. So, our evolutionary pace is quicker, Yet, we still have the interesting dichotomy of ICK or Turner decks and Wes E. and Vlad boards. Carbon/Foam/Glass super-tech stuff Vs. slabs of thick Hardwood. And, mind you, I ran a 'vintage' Hobieflex at the last Farm Outlaw to 6th place...
The real thing that's happening, and it's a cool phenom unto itself, is that Racing makes Room for Improvement. That will to win, 'fairly', I might wish to add, means that people who think a bit outside the box will adapt, and usually bring out some pretty amazing advances as they go. I had watched my 'Other' sport, Snowboarding, totally turn it's back on Racing (with Reason, the FIS and IOC are not fun people to work with). Even as it did this, I saw a change in performance in the boards. Within a few years, Fast + Fun boards were hard to get, and the rate of innovation came to a wrenching, smelly-stagnated halt. Only a few small companies kept up the idea that Speed matters. In ten short years, Skiers caught up with Snowboarders in all phases of ability, except riding Powder and being able to Ollie. Embarrassing to say the least.
Hopefully Skateboarding will look more carefully at it's roots, and at the Creative Thinking that's coming to the fore now. If the trends of the Past are used as lessons for the Future, then we'll see yet another whole level of Skateboarding being born right before our eyes. I hope the stoke of Flowing with Gravity takes root again, and I would have to say the Longboarding, Downhill, Luge, Poolriding(ditches,too), and Slalom have been a Huge part in re-shaping the potential of our sport.
With luck, there will be no more 'skateposers' !
Put together a 'new' ride in Downhill, and it'll take a few runs before you should trust it enough to start going Fast. Add an Innovative idea in there, and you'll probably want a few Days on it to sort out how predictable it's going be at speed. So, our evolutionary pace is quicker, Yet, we still have the interesting dichotomy of ICK or Turner decks and Wes E. and Vlad boards. Carbon/Foam/Glass super-tech stuff Vs. slabs of thick Hardwood. And, mind you, I ran a 'vintage' Hobieflex at the last Farm Outlaw to 6th place...
The real thing that's happening, and it's a cool phenom unto itself, is that Racing makes Room for Improvement. That will to win, 'fairly', I might wish to add, means that people who think a bit outside the box will adapt, and usually bring out some pretty amazing advances as they go. I had watched my 'Other' sport, Snowboarding, totally turn it's back on Racing (with Reason, the FIS and IOC are not fun people to work with). Even as it did this, I saw a change in performance in the boards. Within a few years, Fast + Fun boards were hard to get, and the rate of innovation came to a wrenching, smelly-stagnated halt. Only a few small companies kept up the idea that Speed matters. In ten short years, Skiers caught up with Snowboarders in all phases of ability, except riding Powder and being able to Ollie. Embarrassing to say the least.
Hopefully Skateboarding will look more carefully at it's roots, and at the Creative Thinking that's coming to the fore now. If the trends of the Past are used as lessons for the Future, then we'll see yet another whole level of Skateboarding being born right before our eyes. I hope the stoke of Flowing with Gravity takes root again, and I would have to say the Longboarding, Downhill, Luge, Poolriding(ditches,too), and Slalom have been a Huge part in re-shaping the potential of our sport.
With luck, there will be no more 'skateposers' !
"Surfin' these Old Hills since back in The Day"
-
- Harbor Skateboard Racing
- Posts: 358
- Joined: Fri Jan 10, 2003 1:00 am
- Location: Los Angeles
TORSION / AXLE
Jack, looks sweet. How'd it work for you that day at Pump? Am I correct in assuming that all of the parts are custom, that is, there are no stock Radikal parts in there?
-
- Venezuelan Racer
- Posts: 286
- Joined: Sat Sep 14, 2002 2:00 am
- Location: Stamford, CT and Venezuela in the heart
- Contact:
-
- Morro Bay Skate legend
- Posts: 736
- Joined: Fri Aug 23, 2002 2:00 am
- Location: Morro Bay, California
- Contact:
TL
Inspired by the proven Independent Suspension and Radikal truck designs.
Yes it is CNC.
Every part was custom made.
Yes it is CNC.
Every part was custom made.
-
- Moscow-Washington
- Posts: 1543
- Joined: Wed Aug 28, 2002 2:00 am
- Location: Moscow, Russia
- Contact:
-
- 1961-2013 (RIP)
- Posts: 3279
- Joined: Tue Aug 27, 2002 2:00 am
Keeping us in "suspens-ion"
My questions are what material is used to make the suspension spring between the yokes? Will it hold up to abuse or does fatigue set in after a few runs? Is it spring steel or some exotic alloy?
Also, how are the yoke pivots constructed? Is the "hinge" metal-on-metal, or is there some sort of plastic/teflon/nylon insert? Does any of this suspension system require lubrication or is it designed to run dry? Finally, are different gauge suspension rods needed for different riders? Just like flex, does a 150-pound rider pushing around a cone need a lighter suspension than a guy weighing 225?
Just wondering about all the variables.
Also, how are the yoke pivots constructed? Is the "hinge" metal-on-metal, or is there some sort of plastic/teflon/nylon insert? Does any of this suspension system require lubrication or is it designed to run dry? Finally, are different gauge suspension rods needed for different riders? Just like flex, does a 150-pound rider pushing around a cone need a lighter suspension than a guy weighing 225?
Just wondering about all the variables.
-
- Eric Moore
- Posts: 65
- Joined: Mon Aug 26, 2002 2:00 am
- Location: Boulder, CO
can you use it as a rollerskate truck
what color is it
what would it cost to send it around the world
will it work with my phone
is it a lefty or a righty
can you smoke it
does it weight more than a phone book
does it smell like chicken
will my scoter wheels work with it
and to end it can you blow it out your ass
what color is it
what would it cost to send it around the world
will it work with my phone
is it a lefty or a righty
can you smoke it
does it weight more than a phone book
does it smell like chicken
will my scoter wheels work with it
and to end it can you blow it out your ass
<a href="//www.pavel-skates.com/" target="_blank"><img src="http://i127.photobucket.com/albums/p153 ... nquer2.gif" border="0"></a>
-
- Pavel
- Posts: 2036
- Joined: Mon Apr 26, 2004 8:49 pm
- Location: germany
- Contact:
-
- Posts: 110
- Joined: Fri Jan 30, 2004 4:41 pm
- Location: Jacktown Misahippie
- Contact:
-
- WAX
- Posts: 109
- Joined: Fri Jan 14, 2005 1:20 am
- Location: Northern ColoRado
Jack-traction
That looks like a pretty rad monster....
any fear of the tool steel letting go of the suspension arms in huge, heavy turns....
when does production start?
any fear of the tool steel letting go of the suspension arms in huge, heavy turns....
when does production start?
-
- Morro Bay Skate legend
- Posts: 736
- Joined: Fri Aug 23, 2002 2:00 am
- Location: Morro Bay, California
- Contact:
Tracttion Lab Answer Man
Looks interesting. Any front protos?
Not yet.
What material is used to make the suspension spring between the yokes?
Currently we are using spring steel, we are also doing some experimenting with other materials. The spring steel is holding up very well, we've only blown out one bar so far.
How are the yoke pivots constructed? Is the "hinge" metal-on-metal, or is there some sort of plastic/teflon/nylon insert?
Metal-on-metal presently. There is a self-lubricating washer between the arm and the hanger.
Finally, are different gauge suspension rods needed for different riders?
Yes. You can also pre-load the suspenison for different amounts of travel.
Does it have bearings in all the same places as a Radikal?
Yes

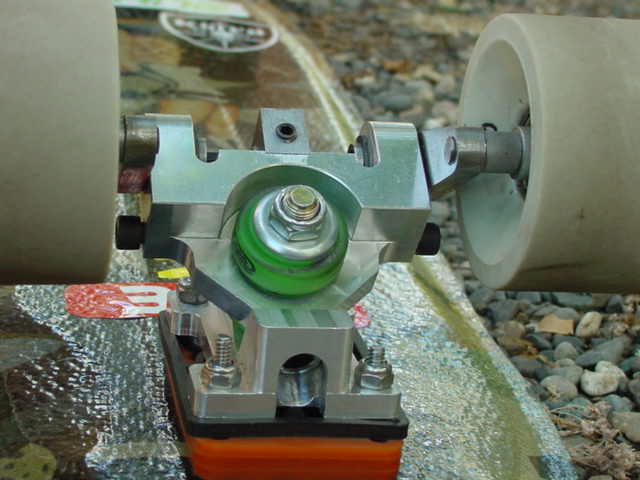

The kingpin looks fixed in there, so if there is a bearing between the bushings, how do you swap the bottom bushing?
Look at the photo closely. The pivot is an allen screw that un-screws from the hanger. The hanger is removed by un-screwing the pivot and then removing the kingpin locknut. No need to remove the kingpin.
Can you use it as a rollerskate truck?
Why not.
What color is it?
Production models will be pink.
What would it cost to send it around the world?
Not sure, but to St. Louis it would run $19.95.
Will it work with my phone?
Possibly.
Is it a lefty or a righty?
Ambidextrious.
Can you smoke it?
No, but you will smoke others with it.
Does it weigh more than a phone book?
It's lighter than the Morro Bay phone book.
Does it smell like chicken?
More like burnt rubber.
Will my scoter wheels work with it?
Not sure about "scoter" wheels. Scooter wheels might work.
And to end it can you blow it out your ass?
Yes, but would be extremely painful.
Can I have it?
For a price.
Any fear of the tool steel letting go of the suspension arms in huge, heavy turns?
Things can and do break. We have installed hex screws that act as safeties in the event of "torsion bar" failure.
When does production start?
No idea.
Not yet.
What material is used to make the suspension spring between the yokes?
Currently we are using spring steel, we are also doing some experimenting with other materials. The spring steel is holding up very well, we've only blown out one bar so far.
How are the yoke pivots constructed? Is the "hinge" metal-on-metal, or is there some sort of plastic/teflon/nylon insert?
Metal-on-metal presently. There is a self-lubricating washer between the arm and the hanger.
Finally, are different gauge suspension rods needed for different riders?
Yes. You can also pre-load the suspenison for different amounts of travel.
Does it have bearings in all the same places as a Radikal?
Yes
The kingpin looks fixed in there, so if there is a bearing between the bushings, how do you swap the bottom bushing?
Look at the photo closely. The pivot is an allen screw that un-screws from the hanger. The hanger is removed by un-screwing the pivot and then removing the kingpin locknut. No need to remove the kingpin.
Can you use it as a rollerskate truck?
Why not.
What color is it?
Production models will be pink.
What would it cost to send it around the world?
Not sure, but to St. Louis it would run $19.95.
Will it work with my phone?
Possibly.
Is it a lefty or a righty?
Ambidextrious.
Can you smoke it?
No, but you will smoke others with it.
Does it weigh more than a phone book?
It's lighter than the Morro Bay phone book.
Does it smell like chicken?
More like burnt rubber.
Will my scoter wheels work with it?
Not sure about "scoter" wheels. Scooter wheels might work.
And to end it can you blow it out your ass?
Yes, but would be extremely painful.
Can I have it?
For a price.
Any fear of the tool steel letting go of the suspension arms in huge, heavy turns?
Things can and do break. We have installed hex screws that act as safeties in the event of "torsion bar" failure.
When does production start?
No idea.
-
- Justin Thyme
- Posts: 142
- Joined: Tue Feb 01, 2005 1:59 am
- Location: Philadelphia P.A.
ow!
I was afraid of that.And to end it can you blow it out your ass?
Yes, but would be extremely painful.
